NYCE NCZ-HA Zigbee Motion Sensor

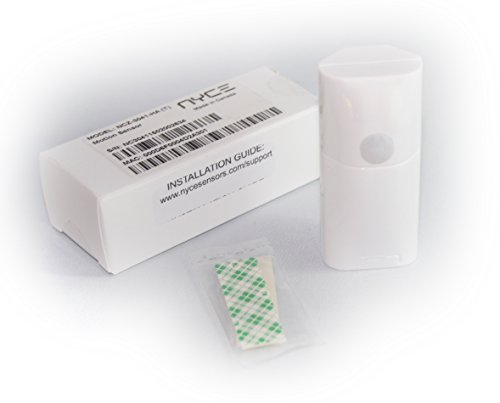

../../../_images/nyce_motion.jpg

Brief information

Nyce Control’s NCZ-3041 is a wireless motion sensor using the ZigBee radio protocol. It is used in conjunction with a low RF transmit power wireless ZigBee network to monitor the occupancy state of indoor areas, and provide this information to other devices operating in a ZigBee Home Automation network.

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Pull out plastic pull-tab. In case inclusion mode of this device time-out, press button 4 times
  • Wait for VENUS scan & detect this device and inform in app
2. Reset before adding
  • Press “Add button” (button ‘+’) in app
  • Press button 6 ~ 10 times, device is reset and auto join to detected network
  • Wait for VENUS scan & detect this device and inform in app

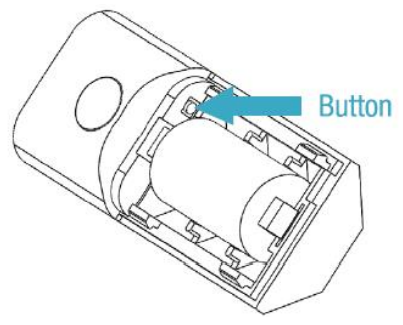

../../../_images/nyce_motion_i.png

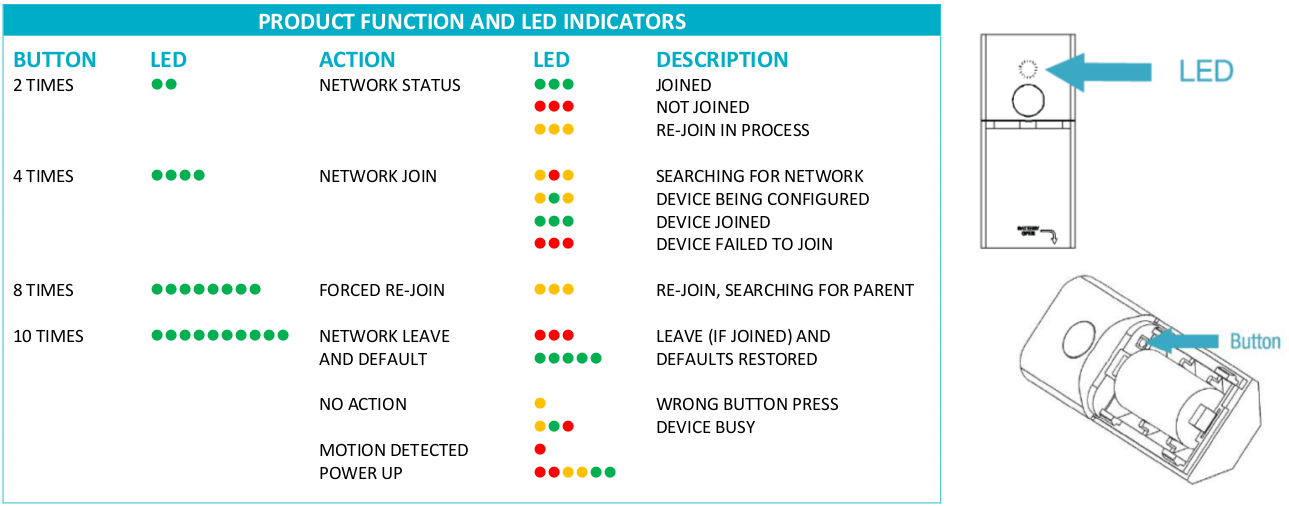

Button action and LED indication

../../../_images/nyce_motion_sensor_led.png

Configuration description

There is no configuration for this device.
