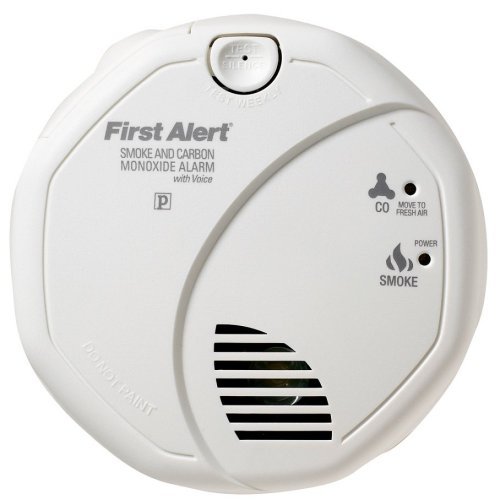

First Alert Smoke and Carbon Monoxide

Brief information

• Separate sensors to detect smoke and CO; the two alarm systems work independently
• Voice with programmable location
• Separate audible and visual signals to indicate alarm levels of smoke or CO
• Powered by two “AA” batteries

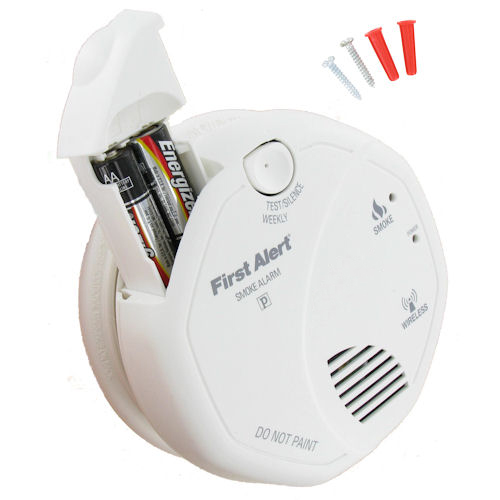

• Side access drawer for easy battery replacement
• Power: 3V (2xAA battery)
• Audio alarm: 85dB at 10 feets

How to add to VENUS app

To add device to VENUS, below actions are required:

• Press “Add button” (button ‘+’) in app

• Reset device:

  + Remove battery tray

  + Press and hold TEST/SILIENCE button and re-install battery tray until 2-beep appears

• Wait for VENUS scan & detect this device and inform in app

Sound and LED indication

State	Sound	LED
Normal operation	Silent	Smoke LED: Flash green once a minute, CO LED: off
Test the alarm	3 beeps, pause, 3 beeps 4 beeps, pause, 4 beeps	Smoke LED: flash red, CO LED: off Smoke LED: off, CO LED: flash red
Battery low	Chirp once a minute	Smoke LED: Flash once a minute, CO LED: off
Alarm operates not properly	3 chirps every minute	Smoke LED: 3 flash once a minute, CO LED: off
Alarm reaches End fo life	5 chirps every minute	Smoke LED: 5 flash once a minute, CO LED: off
Alarm levels of are CO detected	4 beeps, pause, 4 beeps, after 4 min the pause is 1 min	Smoke LED: off, CO LED: flash red
Smoke is detected	3 beeps, pause, 3 beeps	Smoke LED: flash red, CO LED: off

Configuration description

1. Double alarm message

   Enable this feature will cause of sending 2 alarm messages.

   • Available:

     • Enable double alarm messages
     • Disable double alarm messages

   • Default: Disable

   • Parameter 1, 1 byte size
