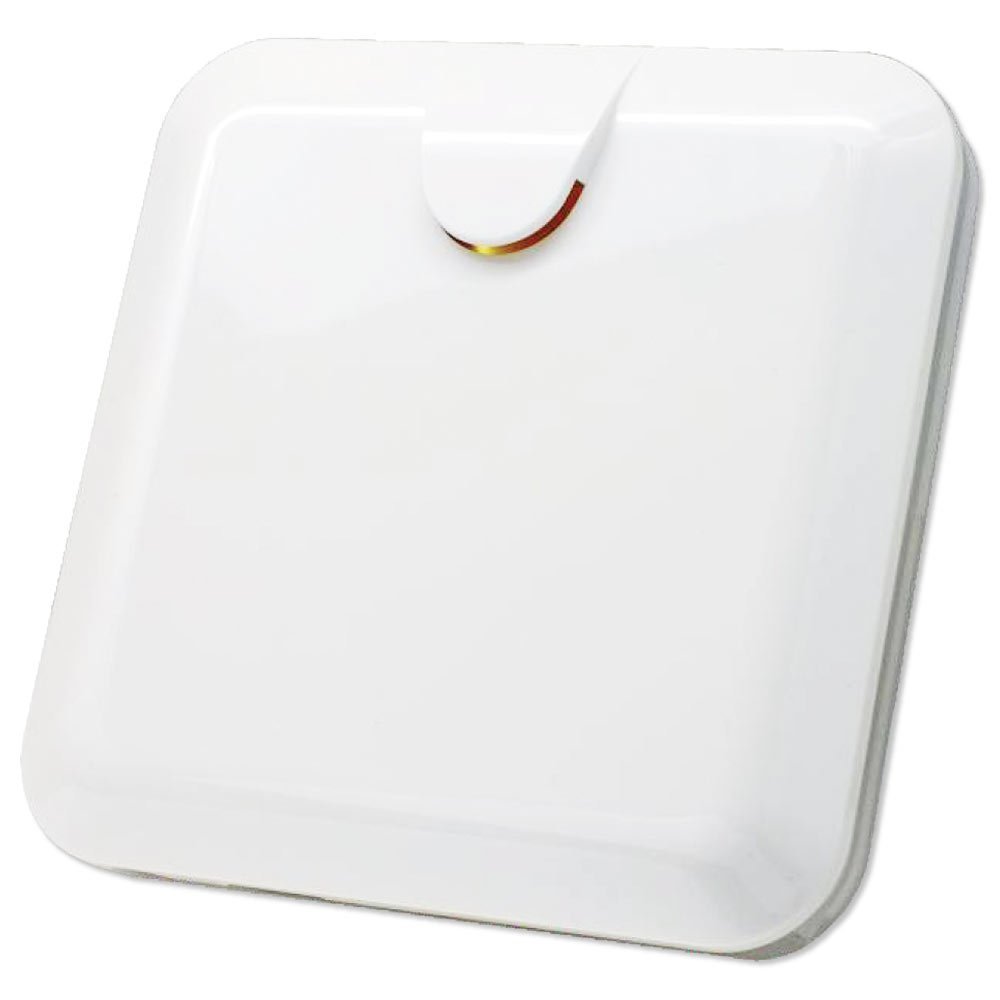

Zipato Z-Wave Indoor Multi-Sound Siren (PH-PSE02.US)

Brief information

• Indoor Z-Wave siren with 6 selectable alarm sounds
• Loud volume (110db) for all sounds
• Z-Wave Plus certified for wide compatibility
• Built-in tamper and over-discharge protection
• Can easily mount in a standard electrical box

How to add to VENUS app

1. Newly add to VENUS network

   • Press “Add button” (button ‘+’) in app
   • Press the tamper key three times within 1.5 seconds
   • Wait for VENUS scan & detect this device and inform in app

2. Reset before adding

   • Press “Add button” (button ‘+’) in app
   • Press the tamper key three times within 1.5 seconds (to reset device)
   • Press the tamper key three times within 1.5 seconds once more (to add)
   • Wait for VENUS scan & detect this device and inform in app

How to add/remove associated device(s) to

This device supports 1 association group with max 8 nodes.

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Press the tamper key three times within 1.5 seconds
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Press the tamper key three times within 1.5 seconds
• If successful, pop-up notification displays in VENUS app

Configuration description

1. Enable alarm

   Available	0: enable 1: disable
   Default	0

2. Alarm duration

   Available	0: never auto stop alarm 1 ~ 127 ticks (tick = 30 seconds)
   Default	6

Factory reset

1. Press tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, then within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED flashes once.
3. IDs are excluded and all settings will reset to factory default.
