Aeon Labs Panic Button Z-Wave

How to add to VENUS app

1. Adding/Removing

   • Press “Add button” (button ‘+’) in app

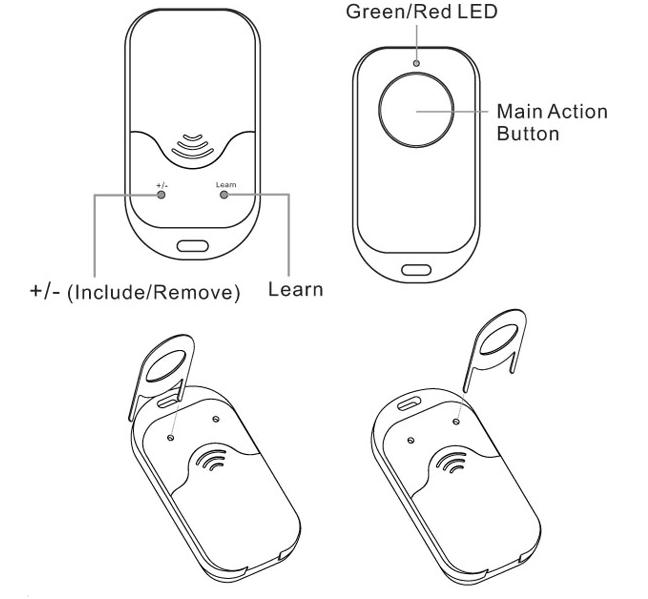

   • Using the a pin, press the Learn button on the Panic Button. Its green light will begin to pulse.
   • Wait for VENUS scan & detect this device and inform in app

How to add/remove device(s) to private Z-Wave network

Key Fob has been designed with the ability to add Z-Wave devices to its network.

1. Using a pin, Press the ‘+/-‘ button. Your Panic Button’s green light will pulse.
2. Press the Z-Wave network button on the device that you wish to add.
3. Once the device has been included, the green light on the Panic Button will stay lit for 2 seconds, and then blink again. If device included unsuccessful, the red light on the Panic Button will stay lit for 2 seconds, then the green light blink again.
4. Once you’re finished, press any button on your Key Fob to exit this mode.

To remove device from private Z-Wave network:

1. Using a pin, Press the ‘+/-‘ button. Your Panic Button’s red light will pulse.
2. Press the Z-Wave button on the device that you wish to remove.
3. Once the device has been removed from the network, the green light on your Panic Button will stay lit for 2 seconds then the red light blink again. If remove unsuccessful, the red light will stay lit for 2 seconds, then blink again.

Configuration description

None

Factory reset

1. Using 2 pins, press and hold the ‘learn’ and ‘+/-‘ buttons 10 seconds.
2. The green light alternates red light 10 seconds on the front of your remote, then the green light will stay solid for 2 seconds if successful.
