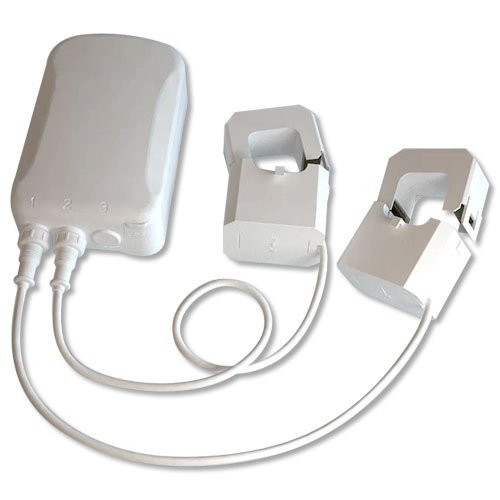

Aeon Labs AEDSB09104ZWUS Aeotec Z-Wave Smart Energy Monitor Meter

../../../_images/eaon_aedsb09104_energy_monitor.jpg

Brief information

  • Low-cost energy monitor for the entire home
  • Wirelessly reports immediate wattage and kWh usage to central control point gateways
  • Can be easily and safely installed by anyone

How to add to VENUS app

  1. Newly add to VENUS network
    • Press “Add button” (button ‘+’) in app
    • Power-up the device

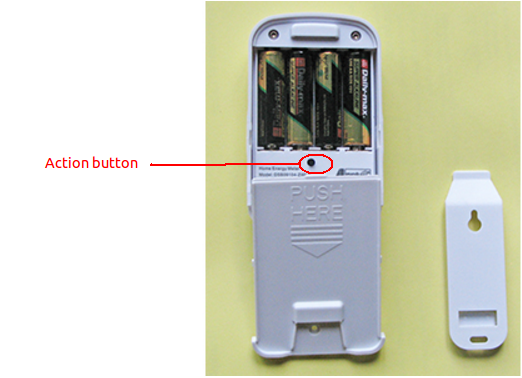

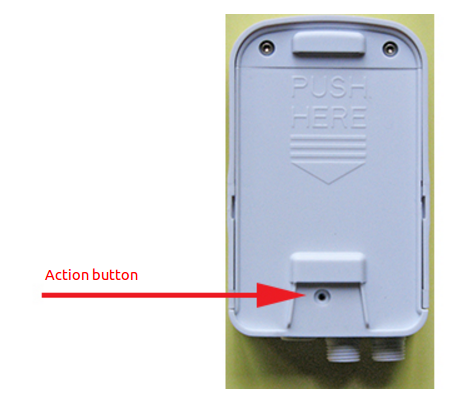

    • Press Action button
    • Wait for VENUS scan & detect this device and inform in app
  2. Reset before adding
    • Press “Add button” (button ‘+’) in app
    • Press Action button (to reset device)
    • Press Action button once more (to add)
    • Wait for VENUS scan & detect this device and inform in app
../../../_images/aeon_aedsb09104_energy_monitor_d_1.png ../../../_images/aeon_aedsb09104_energy_monitor_d.png

How to add/remove associated device(s) to

This device support 1 association group with max 5 nodes.

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Press Action button to wake-up device (in case of battery usage)
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Press Action button to wake-up device (in case of battery usage)
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Energy detection

    This parameter is used to configure the energy detection mode

    Available 0: report Wattage and the absolute KWH value 1: report positive/negative Wattage and the algebraic sum KWH value 2: report positive/negative Wattage and the positive KWH value (consuming electricity) 3: report positive/negative Wattage and the negative KWH value (generating electricity)
    Default 0
  2. Enable auto report

    Enable selective reporting only when power change reaches a certain threshold or percentage

    Available 0: disable 1: enable
    Default 1
  3. Threshold in Watt to trigger report

    Threshold change in wattage to induce a automatic report in whole clamps

    Available 0 ~ 60000
    Default 50
  4. Threshold in Watt to trigger report

    Threshold change in wattage to induce a automatic report in clamp 1 or clamp 2

    Available 0 ~ 60000
    Default 50
  5. Threshold in percentage to trigger report

    Threshold change in wattage to induce a automatic report in whole clamps

    Available 0 ~ 100
    Default 10
  6. Threshold in percentage to trigger report

    Threshold change in wattage to induce a automatic report in clamp 1 or clamp 2

    Available 0 ~ 100
    Default 10

Factory reset

  1. Press and hold the Action Button for 10 seconds.
  2. If successful, the LED on the HEM should begin to blink slowly
