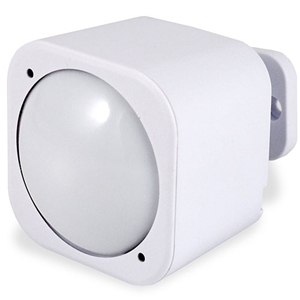

Aeon Labs Gen6 Multi-Sensor

Brief information

• Model number: ZW100
• Power Supply: USB DC 5V or battery power(2×CR123A batteries, 3V, 1500mAh)
• Operating Temperature: 0 C to 40 C .
• Measured Temperature Range: -10 C to 50 C . Accuracy: ±0.5 C .
• Humidity Range: 20%RH to 80%RH. Accuracy: ±5%RH (at 25 C ).
• Lighting: 0 LUX to 1000 LUX.
• Motion Sensitivity: 3 meters to 5 meters.
• Water Proofing: IP20.
• Wireless Range: Up to 500feet/150 metres outdoors.

How to add to VENUS app

To add device to VENUS, below actions are required:

• Press “Add button” (button ‘+’) in app

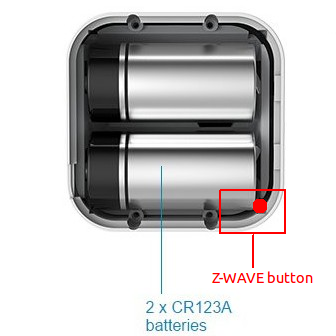

• Reset device: input battery or power-supply then press z-wave button once
• Wait for VENUS scan & detect this device and inform in app
• Reset device again to complete adding device to VENUS

1. Activation

• Press “Add button” (button ‘+’) in app
• Input battery or power-supply then 1 time press z-wave button
• Wait for VENUS scan & detect this device and inform in app

2. Reset then re-add

• Press “Add button” (button ‘+’) in app
• Press z-wave button once (to reset)
• Press z-wave button once again (to add)
• Wait for VENUS scan & detect this device and inform in app

Wake up information

• When battery is used, to wake up device, press and hold its Z-Wave Button for 3 seconds and then release it. Your MultiSensor’s LED should now be solid to indicate that it is active.
• When completing configurating or communicating with device, to put device into sleep mode for battery saving, press and hold its Z-Wave Button for 3 seconds and then release it.
• When power-supply is used, device is in waken up state always.

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Wake-up this sensor: press z-wave button once
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Wake-up this sensor: press z-wave button once
• If successful, pop-up notification displays in VENUS app

Factory reset

Press and hold z-wave button for 20 seconds and then release. LED will stay in solid for 2 seconds and then turn off indicates reset successfully.

Button pressed actions and events

Short 1 time pressed	Send non-secure node info frame Add device to z-wave network Remove device from z-wave network
Short 2 times pressed in 1 seconds	Send secure node info frame
Press and hold 3 seconds	Enable/disable wake up for 10 minutes
Press and hold 20 seconds	Reset device to factory setting

Configuration description

1. Wakeup mode

   This setting enable/disable waking up mode for every 10 minutes when re-power the sensor in battery mode

   • Available:

     • 0: disable
     • others: enable

   • Default: 0

   • Parameter 2, 1 byte size

2. Auto clear motion interval

   This setting adjusts time to send to associated devices to clear motion trigger.

   • Available:

     • 10 ~ 255: interval time in seconds

     • 256 ~ 3600: interval time in units

       • unit = setting time/60 if no remainder
       • unit = setting time/60 if remainder

   • Default: 240

   • Parameter 3, 2 bytes size

3. Motion sensity

   This setting determines motion sensity.

   • Available:

     • 0: disable motion sensor
     • 1 ~ 5: motion sensity level. Lowest sensity is 1 and highest sensity is 5.

   • Default: 5

   • Parameter 4, 1 bytes size

4. Low battery definition

   This setting defines low battery level

   • Available:

     • 10 ~ 50: value in percentage

   • Default: 20

   • Parameter 39, 1 bytes size

5. Low battery definition

   This setting defines low battery level

   • Available:

     • 10 ~ 50: value in percentage

   • Default: 0

   • Parameter 40, 1 bytes size

6. Auto report selection

   This setting enable/disable auto report when measurement reach the threshold of temperature, huminity, luminance and battery level.

   • Available:

     • 0: Disable
     • 1: Enable

   • Default: 0

   • Parameter 40, 1 byte size

7. Temperature change

   Threshold change in temperature to induce an automatic report.

   • Available: 0 ~ 32767

     • Unit is Farenheit for US verson, Celcius for EU/AU version
     • Value contains 1 decimal point, e.g: setting value is 20, it means that US version is 2.0 oF, EU/AU version is 2.0 oC

   • Default: 20

   • Parameter 41, 2 bytes size

8. Huminity change

   Threshold change in humidity to induce an automatic report.

   • Available: 0 ~ 32767

     • Unit is percentage
     • Value 10 means that if the current huminity gap more than 10%, report is sent

   • Default: 10

   • Parameter 42, 2 bytes size

9. Luminance change

   Threshold change in Luminance to induce an automatic report.

   • Available: 0 ~ 32767 LUX
   • Default: 100
   • Parameter 43, 2 bytes size

10. Battery change

    Threshold change in battery to induce an automatic report.

    • Available: 0 ~ 32767

      • Unit is percentage
      • Value 10 means that if the current battery gap more than 10%, report is sent

    • Default: 10

    • Parameter 44, 2 bytes size

11. Ultraviolet change

    Threshold change in ultraviolet to induce an automatic report.

    • Available: 0 ~ 32767
    • Default: 2
    • Parameter 45, 1 byte size

12. Temperature threshold

    This setting determines if this sensor sends report when low temperature or not. Less than -15 oC is low temperature.

    • Available:

      • 0: Disable
      • 1: Enable

    • Default: 0

    • Parameter 46, 1 byte size

13. Report type selection

    This setting defines type of information reports send to controller.

    • Available:

      • None of report will be sent to controller
      • Luminance
      • Huminity
      • Temperature
      • Ultraviolet
      • Battery

    • Default: all types are selected

    • Parameter 101, 4 bytes size

14. Report type selection

    This setting defines type of information reports send to controller.

    • Available:

      • None of report will be sent to controller
      • Luminance
      • Huminity
      • Temperature
      • Ultraviolet
      • Battery

    • Default: all types are selected

    • Parameter 101, 4 bytes size

15. Auto report interval

    This setting defines interval time to auto send report to controller.

    • Available: 5 ~ 2678400 units

      • When USB power, unit is seconds
      • When battery, min is 60 minutes. When setting value is in 5 –> 3600, 60 minutes; 3601 –> 7200, 120 minutes; and more...

    • Default: 3600 (60 min)

    • Parameter 111, 4 bytes size
