Ecolink Home Motion Sensor

How to add to VENUS app

To add device to VENUS, below actions are required:

• Press “Add button” (button ‘+’) in app

• Reset device: remove battery for at least 5 seconds then re-install

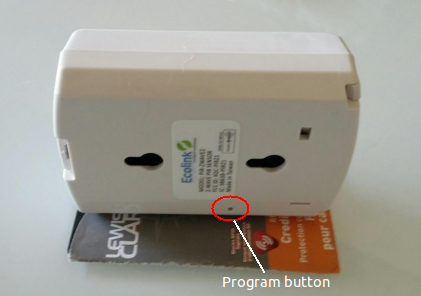

  Or press **Program button* by a paper clip*

• Wait for VENUS scan & detect this device and inform in app

• Reset device again to complete adding device to VENUS

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Wake-up this sensor: press Program button by a paper clip
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Wake-up this sensor: press Program button by a paper clip
• If successful, pop-up notification displays in VENUS app

Configuration description

1. Trigger OFF to associated device

   Enable this feature device will trigger OFF signal to associated device when door is closed.

   • Available:

     • Enable
     • Disable

   • Default: Enable

   • Parameter 99, 1 byte size
