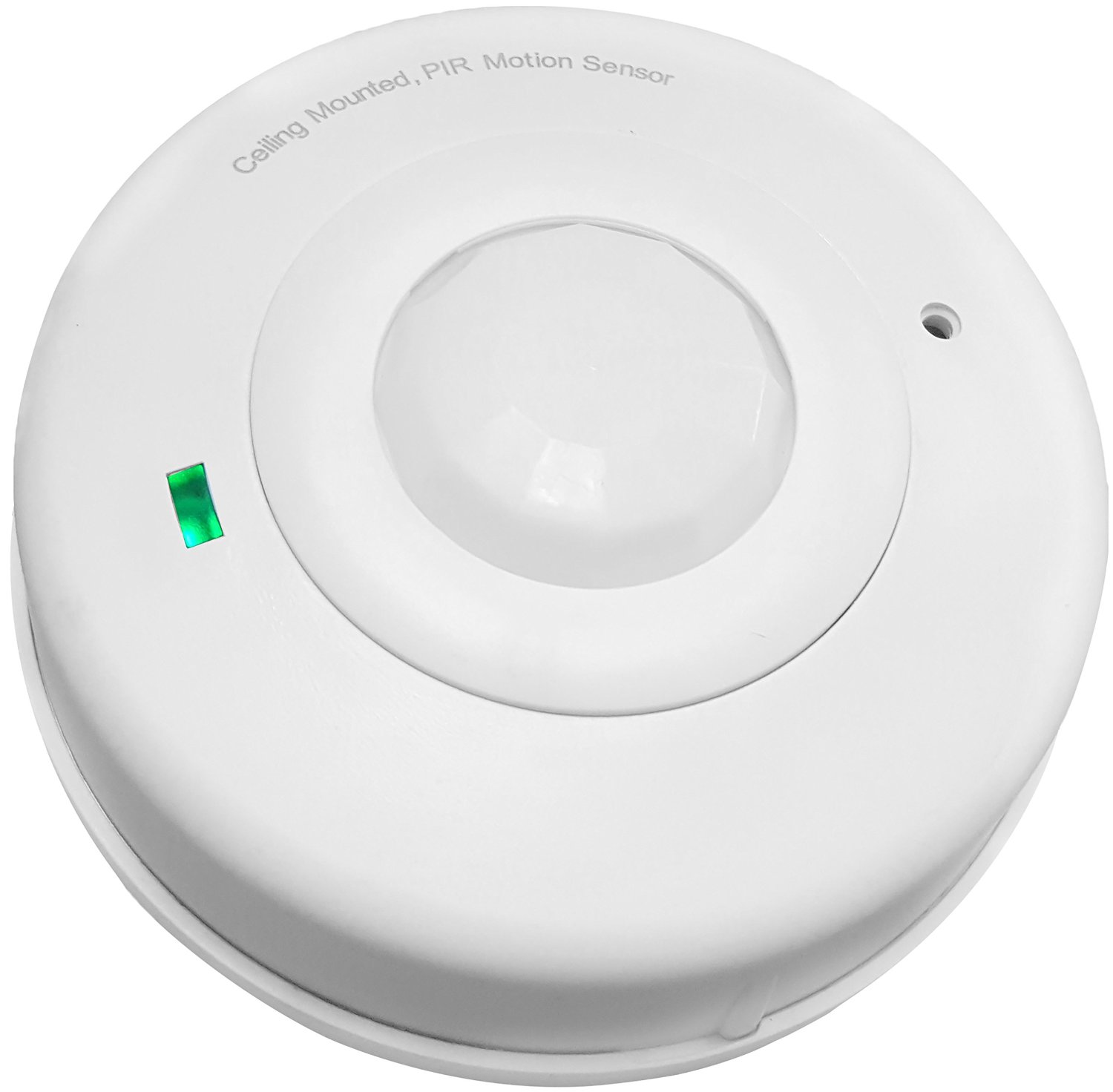

Enerwave ZWN-BPC Z-Wave Celling Occurpancy Motion Sensor PIR 360 degree sensor

../../../_images/enerwave_ceiling_motion_360.jpg

Brief information

  • ZWN-BPC Occupancy PIR sensor enabled with Z-Wave wireless control and Z-wave association function
  • Detects motions, automatically control ON/OFF/Dimming/thermostat of 5 z-wave associated or group scene devices
  • 360° motion detection, 600 sq.ft range, 4-position adjustable PIR sensitivity
  • Long lasting battery life approximately 1 year with low battery detection; Sensor status can be monitored from PC, tablet or smartphone
  • Battery-Powered; Low Power Detecting; Easy install, no need of wiring/drilling, 2 free AA batteries

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Remove thin pull tab plastic
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app

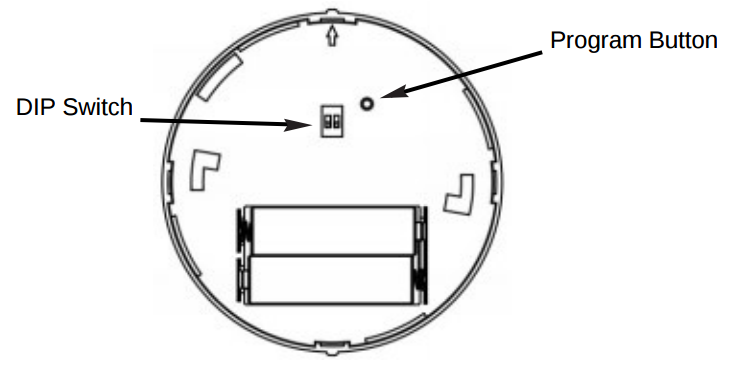

  • Press and release the program button located at the back of motion sensor
  • Program LED will stay solid for 5 seconds and turn off when succeeds.
  • Wait for VENUS scan & detect this device and inform in app
../../../_images/enerwave_celling_pir_360_i.png

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Press and hold the program button for 1 second
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Pressing link key 3 times within 1.5 second
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Delay time to clear motion

    Available 0: Not send OFF trigger to clear motion 1 ~ 240: time in minutes 241 ~ 255: 15 seconds
    Default T.B.D
