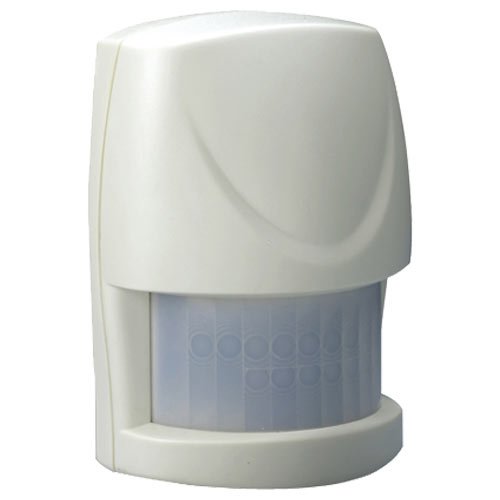

Everspring Compact Z-Wave Motion Sensor (HSP02)

../../../_images/everspring_motion.jpg

Basic operation

The HSP02 is designed to control Z-Wave devices based on motion and light level. Example: Use to turn on lights when a dark room is entered. The unit can also report motion sensed to HomeSeer and other control systems.

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Remove thin pull tab plastic
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Pressing link key 3 times within 1.5 second
  • Wait for VENUS scan & detect this device and inform in app

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Pressing link key 3 times within 1.5 second
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Pressing link key 3 times within 1.5 second
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Trigger value to associated devices

    Available
    1 - 99: ON (Binary switch devices)
    Dim value (Multi-level devices)
    Default 99

  2. Enable/Disable Sensor Detecting Function

    Available 0: Disable trigger to both controller and associated devices 1: Enable trigger to both controller and associated devices 2: Enable trigger to controller and disable to associated devices 3: Disable trigger to controller and enable to associated devices
    Default 1

  3. Set sensity level

    Available 1 - 10 (sensity level)
    Default 6

  4. Re-trigger Interval Setting (PIR sensor only)

    Available 5 ~ 3600 (trigger interval)
    Default 180
  5. Lux level setting

    Lux level which determines when the light sensor will be activated.

    Available 1 ~ 100 (trigger interval)
    Default 10
  6. On/Off duration

    The duration determines how long the module/lighting should stay ON. For instance, Lamp Module turns off 100 secs after it has been turned on.

    Available 5 ~ 3600 (in seconds)
    Default 15
