Schlage Home Motion Sensor

Brief information

• For indoor use only
• 90° wide angle detection pattern
• Operating frequency: 908.42 MHz
• Operation range: Up to 100 feet (30.5 meters) line-of-sight
• Operating temperature: 0° – 49°C, 32° – 120°F
• Battery type required: 3V Lithium CR123A
• Battery life approximately 3 years

How to add to VENUS app

1. Activation

• Press “Add button” (button ‘+’) in app
• Remove the plastic pull-tab from the back of device
• Wait for VENUS scan & detect this device and inform in app

2. Reset then re-add

• Press “Add button” (button ‘+’) in app

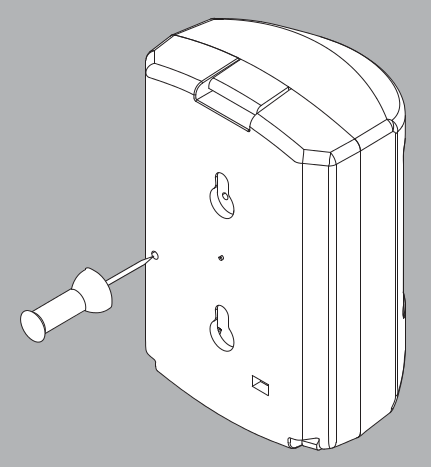

• Use a pin or paper clip to press the program button on the back of the Sensor case
• Wait for VENUS scan & detect this device and inform in app

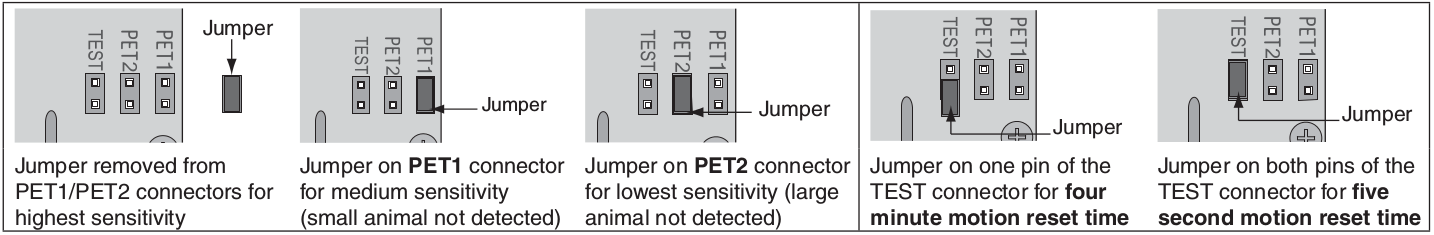

Jumper setting

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Wake-up this sensor: press Program button by a paper clip
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Wake-up this sensor: press Program button by a paper clip
• If successful, pop-up notification displays in VENUS app

Configuration description

1. Trigger OFF to associated device

   Enable this feature device will trigger OFF signal to associated device when door is closed.

   • Available:

     • Enable
     • Disable

   • Default: Enable

   • Parameter 99, 1 byte size
