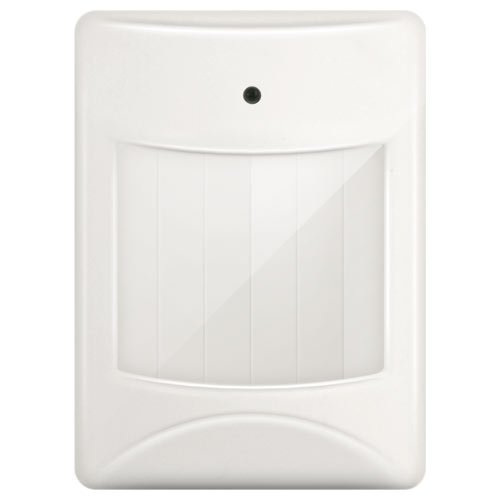

Zipato Z-Wave Multi-sensor Dual (VS-ZP3102.US)

../../../_images/zipato_multi_sensor_dual.jpg

Basic information

  • Two-in-one Z-Wave sensor
  • Measures room temperature
  • Detects movement up to 32 feet away
  • Monitors for activity or for lack of activity
  • Built-in tamper protection

How to add to VENUS app

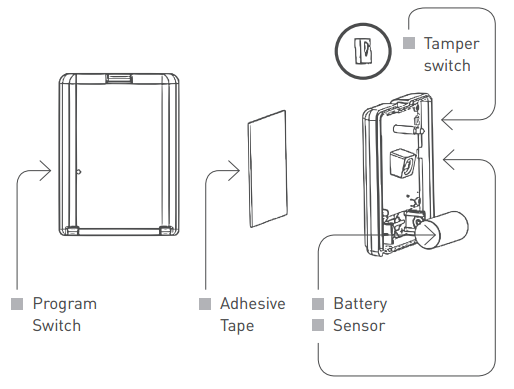

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Insert battery
  • The LED starts flash slowly
  • Press the program switch once
  • The LED on the sensor should stop flashing
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press the program switch once (reset)
  • The LED starts flash slowly
  • Press the program switch once (re-add)
  • The LED on the sensor should stop flashing
  • Wait for VENUS scan & detect this device and inform in app
../../../_images/zipato_multi_sensor_dual_i.png

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Remove device’s cover case to turn device into awake mode
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Remove device’s cover case to turn device into awake mode
  • If successful, pop-up notification displays in VENUS app

Configuration description

There is no configuration for this device.
