ZOOZ Z-Wave Plus 4-in-1 Sensor ZSE40 (motion/light/temperature/humidity)

../../../_images/intermatc_ca9000_indoor_pir.jpg

Brief information

  • 4 smart sensors in 1 compact device.

  • 7 levels of motion sensitivity to choose from. 3 modes for motion / temp led indicator notifications

  • Built-in tamper protection. Low battery alerts.

  • Z-Wave Plus with improved 500 chip for faster and safer wireless communication

  • NOTE! This product is not supported by most Z-Wave alarm panels such as ADT Pulse

    or controllers such as Wink which do not support multi-level command class. Please check with your hub’s support to make sure this product will be recognized by their software correctly.

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Press and release the Z-Wave button TWICE quickly
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press and release the Z-Wave button TWICE quickly (reset)
  • Press and release the Z-Wave button TWICE quickly again (re-add)
  • Wait for VENUS scan & detect this device and inform in app

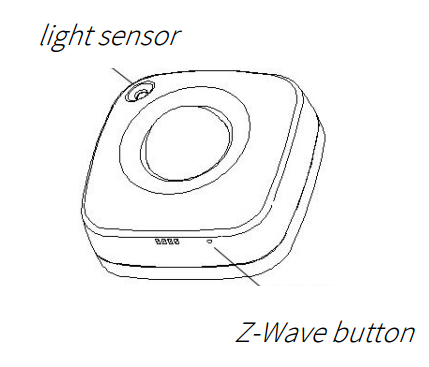

../../../_images/zooz_plus_4in1_zse40_d.png

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Press and release the Z-Wave button
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Press and release the Z-Wave button
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Temperature report type

    Select tempertature type to report to controller

    Available 0: Celcius 1: Fahraheit
    Default 0
  2. Huminity sensity

    Huminity sensity value reported to controller

    Available 1 ~ 50 (in percent)
    Default 10
  3. Light sensity

    Light sensity value reported to controller

    Available 1 ~ 50 (in percent)
    Default 10
  4. Motion sensity

    Motion sensity value setting in this device

    Available 1 ~ 7 (Motion sensity level, 1: very high - 7: very low)
    Default 4
  5. Motion time-out

    Period of time to device clear motion state in order to ready to process new motion

    Available 1 ~ 255 (in minutes)
    Default 3
  6. LED notification

    Motion sensity value setting in this device

    Available 1: LED indicator is turned off 2: temperature indicated with pulsing light. Motion indicated with flashing light 3: Temperature and motion indicated with flashing light.
    Default 3

    LED indicator colors: - Green = under 60°F - Blue = 60°-75°F - Yellow = 75°-83°F - Purple = 83°-97°F - Red = over 97°F / motion detected / tamper switch triggered
