Aeon Labs Door/Window Sensor

Brief information

• The Aeon Labs D/W Sensor is a battery-powered Z-Wave magnetic door/window sensor with an extremely small form factor. The D/W sensor will send radio signals up to 6 associated Z-Wave devices within its own Z-Wave network when the main unit separates from the smaller unit.
• Bidirectional mounting plate and push button allows for easy end-user installation. The Aeon Labs D/W Sensor also has tamper prevention capabilities and low-battery alerts.
• 1 year battery life 2xAAA battery
• Up to 100 feets/30 metres indoor and 254 feeds/100 metres outdoor

How to add to VENUS app

1. Activation

• Press “Add button” (button ‘+’) in app
• Remove the plastic pull-tab from the back of device
• Wait for VENUS scan & detect this device and inform in app

2. Reset then re-add

• Press “Add button” (button ‘+’) in app

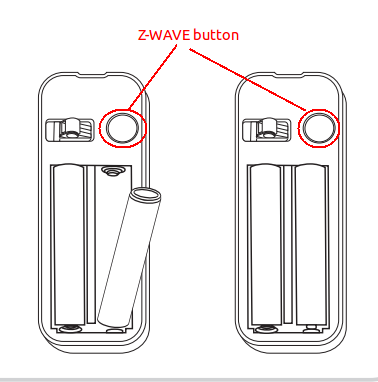

• Pressing z-wave button once to reset
• Pressing z-wave button once again to add
• Wait for VENUS scan & detect this device and inform in app

Wake up information

• D/W sensor will keep wake up for 8 seconds after it send wake up notification command.

• If it receive a command,it will keep wake up for 8 seconds to wait next command.

• Press tamper switch 3 times, then D/W sensor will wake 10 minutes.

• If configured, d/w sensor will wake 10 minutes too when power on.

• Only 3 ways can abort this status:

  • Pressing tamper switch 3 times, sleep right now;
  • D/W sensor received “Wake up no more information CC”, sleep right now;
  • Received other command, wake 8 seconds to wait next command.

LED indicator

• ON: In network
• OFF: Sleeping
• Blink: Out of network

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Wake-up this sensor: 1 time press z-wave button
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Wake-up this sensor: 1 time press z-wave button
• If successful, pop-up notification displays in VENUS app

Factory reset

To reset this device to factory setting, press and hold z-wave button in 20 seconds. LED will blink in 3 seconds to let user know the reset successful.

Configuration description

1. Trigger signal to controller

   Type of signal trigger to controller when magnet switch open/close.

   • Available:

     • Trigger alarm to controller when magnet open
     • Trigger alarm to controller when magnet close

   • Default: Trigger alarm to controller when magnet open

   • Parameter 1, 1 byte size

2. Wake up device for 10 minutes

   This setting enables device to be in waken up state for 10 minutes from power-on.

   • Available:

     • Enable 10 minutes waken-up from power on
     • Disable 10 minutes waken-up from power on

   • Default: Enable 10 minutes waken-up from power on

   • Parameter 2, 1 byte size

3. Trigger signal to associated device

   Type of signal trigger to associated devices when magnet switch open/close.

   • Available:

     • Trigger ON to associated devices when magnet open
     • Trigger ON to associated devices when magnet close

   • Default: Trigger ON to associated devices when magnet open

   • Parameter 3, 1 byte size

4. Trigger report types

   Select kinds of report that device will trigger in case of events.

   • Available:

     • Trigger event to controller
     • Trigger event to associated devices
     • Triger event with battery information

   • Default: all above options are selected

   • Parameter 121, 4 bytes size.
