Ecolink Tilt Sensor

Brief information

• Monitors open/closed status of garage door
• Triggers alert when tilted
• Integrates into a Z-Wave network
• Wireless range up to 100 feet
• Mounting hardware included

How to add to VENUS app

1. Activation

• Press “Add button” (button ‘+’) in app
• Remove the plastic pull-tab from the back of device
• Wait for VENUS scan & detect this device and inform in app

2. Reset then re-add

• Press “Add button” (button ‘+’) in app

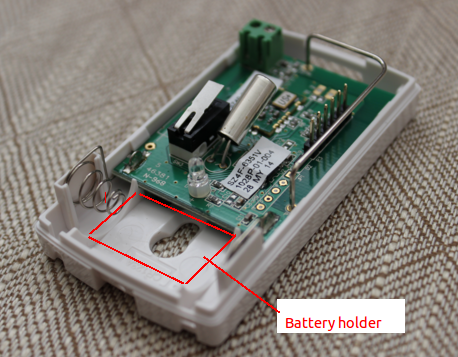

• Remove battery for at least 5 seconds, re-install battery to reset
• Remove battery and insert again to add
• Wait for VENUS scan & detect this device and inform in app

How to add/remove associated device(s) to

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Wake-up this sensor: remove battery and then re-install
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Wake-up this sensor: remove battery and then re-install
• If successful, pop-up notification displays in VENUS app

Configuration description

1. Trigger OFF to associated device

   Enable this feature device will trigger OFF signal to associated device when door is closed.

   • Available:

     • Enable
     • Disable

   • Default: Enable

   • Parameter 99, 1 byte size
