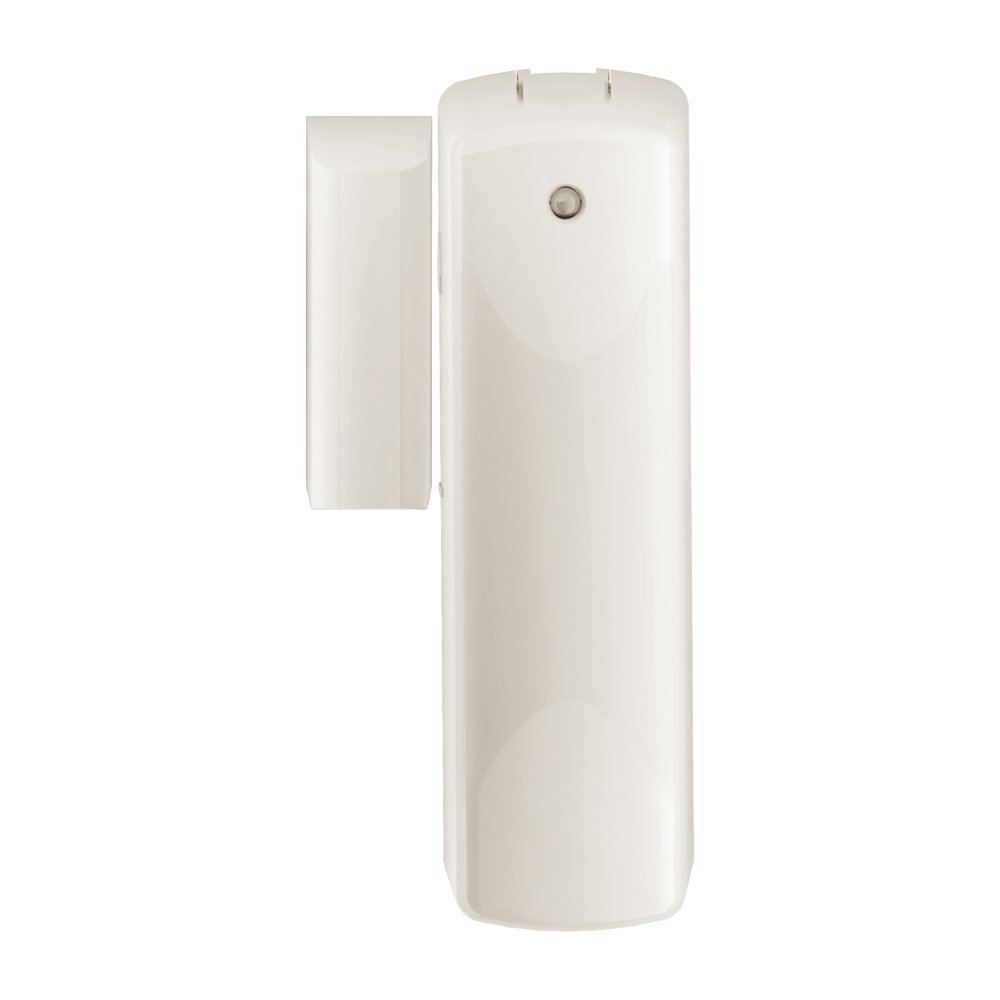

Schlage Home Door Window Sensor¶
Brief information¶
- For indoor use only
- Operating frequency: 908.42 MHz
- Operation range: Up to 100 feet (30.5 meters) line-of-sight
- Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature)
- Battery type required: 3V Lithium CR123A
- Battery life approximately 3 years
How to add to VENUS app¶
- 1. Activation
- Press “Add button” (button ‘+’) in app
- Remove the plastic pull-tab from the back of device
- Wait for VENUS scan & detect this device and inform in app
- 2. Reset then re-add
- Press “Add button” (button ‘+’) in app
- Remove battery for at least 10 seconds, re-install battery
- Wait for VENUS scan & detect this device and inform in app
LED indicator¶
- Continuously blinking: device is not in any z-wave network
- Solid light: device is in a z-wave network or tamper
- Single blink: Open/Close detected
How to add/remove associated device(s) to¶
To add associated device(s) to this sensor, below action is required:
- Add z-wave notified-devices (which will be associated to this sensor) to VENUS
- Select Associate button and then select notified-device(s) to add
- Wake-up this sensor: remove battery and then re-install
- If successful, pop-up notification displays in VENUS app
To remove associated device(s) from this sensor, below action is required:
- Select Associate button and then select notified-device(s) to remove
- Wake-up this sensor: remove battery and then re-install
- If successful, pop-up notification displays in VENUS app
Configuration description¶
Signal trigger device (Trigger to associated devices)
Available setting ON - When the door/window OPENNED, the associated devices are triggered as ON.
And when the door/window is CLOSED, the associated devices are triggered as OFF.OFF - When the door/window OPENED, the associated devices are triggered as OFF.
And when the door/window is CLOSED, the associated devices are triggered as ON.Default ON
