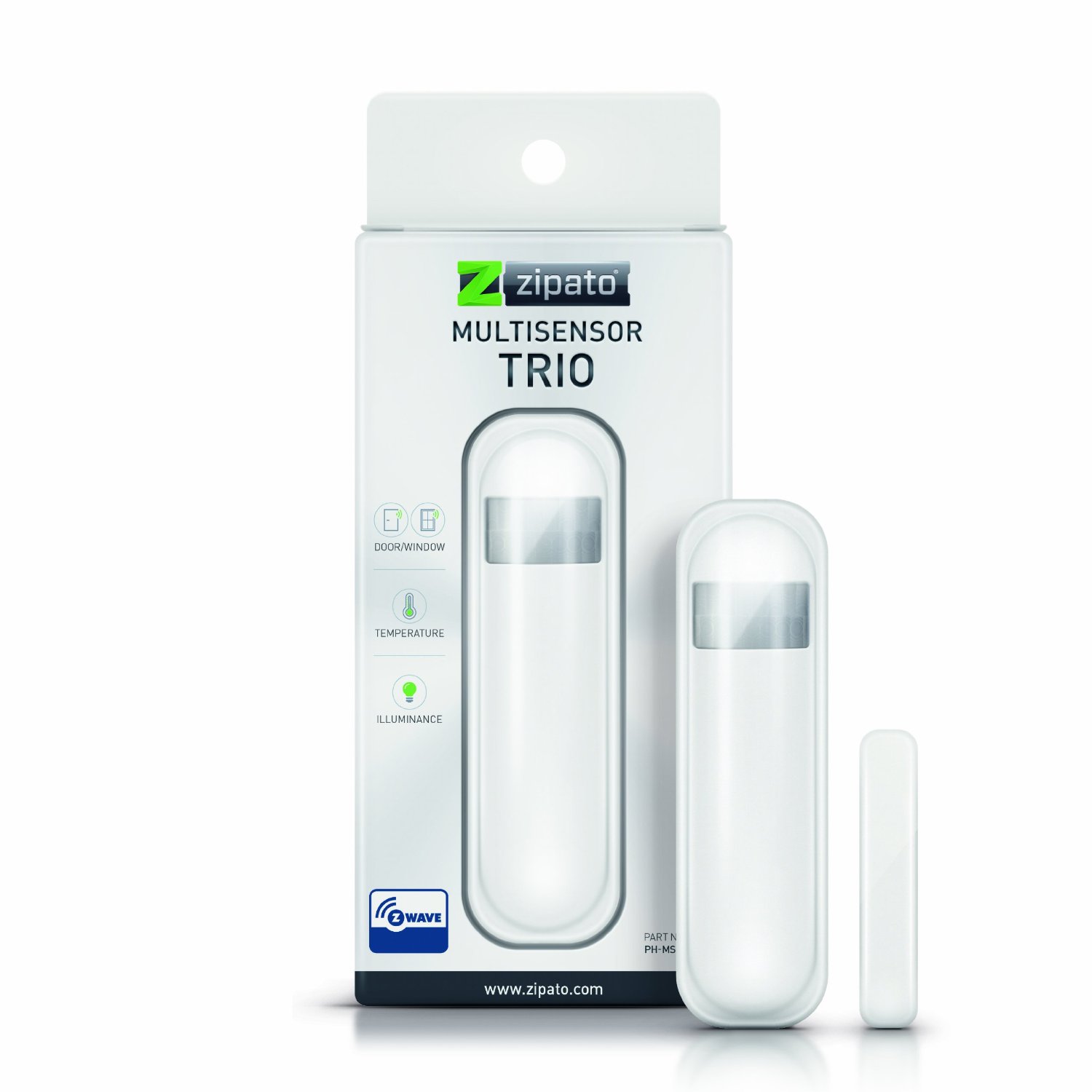

Zipato Z-Wave multi sensor Trio, White

Brief information

• Reliable detection of open/closed status as well and metering functions
• Measures light levels and room temperature
• Can trigger a security system alarm
• Built-in tamper protection
• Battery Operated, has low battery alerts

How to add to VENUS app

1. Activation

• Press “Add button” (button ‘+’) in app
• Remove thin pull tab plastic
• Wait for VENUS scan & detect this device and inform in app

2. Reset then re-add

• Press “Add button” (button ‘+’) in app
• Pressing tamper key three times within 1.5 seconds
• Wait for VENUS scan & detect this device and inform in app

How to add/remove associated device(s) to

This device supports 2 associated groups, 1 for report message and 1 for controlling associated devices. And supports maximum 8 devices each group.

To add associated device(s) to this sensor, below action is required:

• Add z-wave notified-devices (which will be associated to this sensor) to VENUS
• Select Associate button and then select notified-device(s) to add
• Pressing tamper key three times within 1.5 seconds
• If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

• Select Associate button and then select notified-device(s) to remove
• Pressing tamper key three times within 1.5 seconds
• If successful, pop-up notification displays in VENUS app

Configuration description

1. Trigger value to associated devices

   Available	0: OFF (Turn off devices) 1 ~ 99: ON (Binary switch devices) Dim value (Multi-level devices) 255: ON
   Default	255

2. Light threshold setting

   Setting the illumination threshold to turn on the light..

   Available	0: Turn off illumination detected function (DEBUG mode only) 1 ~ 99: illumination detected level (1: darkest, 99: brightest) 100: Turn off illumination detected function and always turn on the associated devices (DEBUG mode only)
   Default	99

3. Operation mode

   This setting uses bit control

   Bit 1	0: Normal mode 1: Test mode
   Bit 2	0: Enable door/window sensor 1: Disable
   Bit 3	0: Fahrenheit temperature type 1: Celcius temperature type
   Bit 4	0: Enable illumination 1: Disable
   Bit 5	0: Enable temperature detect function 1: Disable
   Bit 7	0: Enable the back key release into test mode 1: Disable
   Default	0x00

4. Motion detected time-out

   Interval time to send trigger OFF from the last motion

   Available	0: never send trigger OFF to associated devices 1 ~ 127 (in ticks, 1 tick = 8 seconds)
   Default	4 (32 seconds)

5. Auto report tick time interval

   Setting period of time for each tick. This tick is used for below configuration settings

   Available	0: Turn OFF all auto report functions 1 ~ 255 (in seconds)
   Default	30

6. Battery auto report time

   A period of time that device sends battery information to controller

   Available	0: Turn OFF this function 1 ~ 127 (in ticks)
   Default	12

7. Door/window state auto report time

   A period of time that device sends door/window state to controller

   Available	0: Turn OFF this function 1 ~ 127 (in ticks)
   Default	12

8. Illumination auto report time

   A period of time that device sends illumination detected information to controller

   Available	0: Turn OFF this function 1 ~ 127 (in ticks)
   Default	12

9. Temperature auto report time

   A period of time that device sends temperature information to controller

   Available	0: Turn OFF this function 1 ~ 127 (in ticks)
   Default	12

Factory reset

• Pressing tamper key four times within 1.5 seconds and during 4th press, hold the tamper key until LED lights up.
• After 3 seconds the LED will turn OFF, and after next 2 seconds, release the tamper key. If successful, the LED will light ON for second. Otherwise, the LED will flash once.
• IDs are excluded and all settings will reset to factory default.
