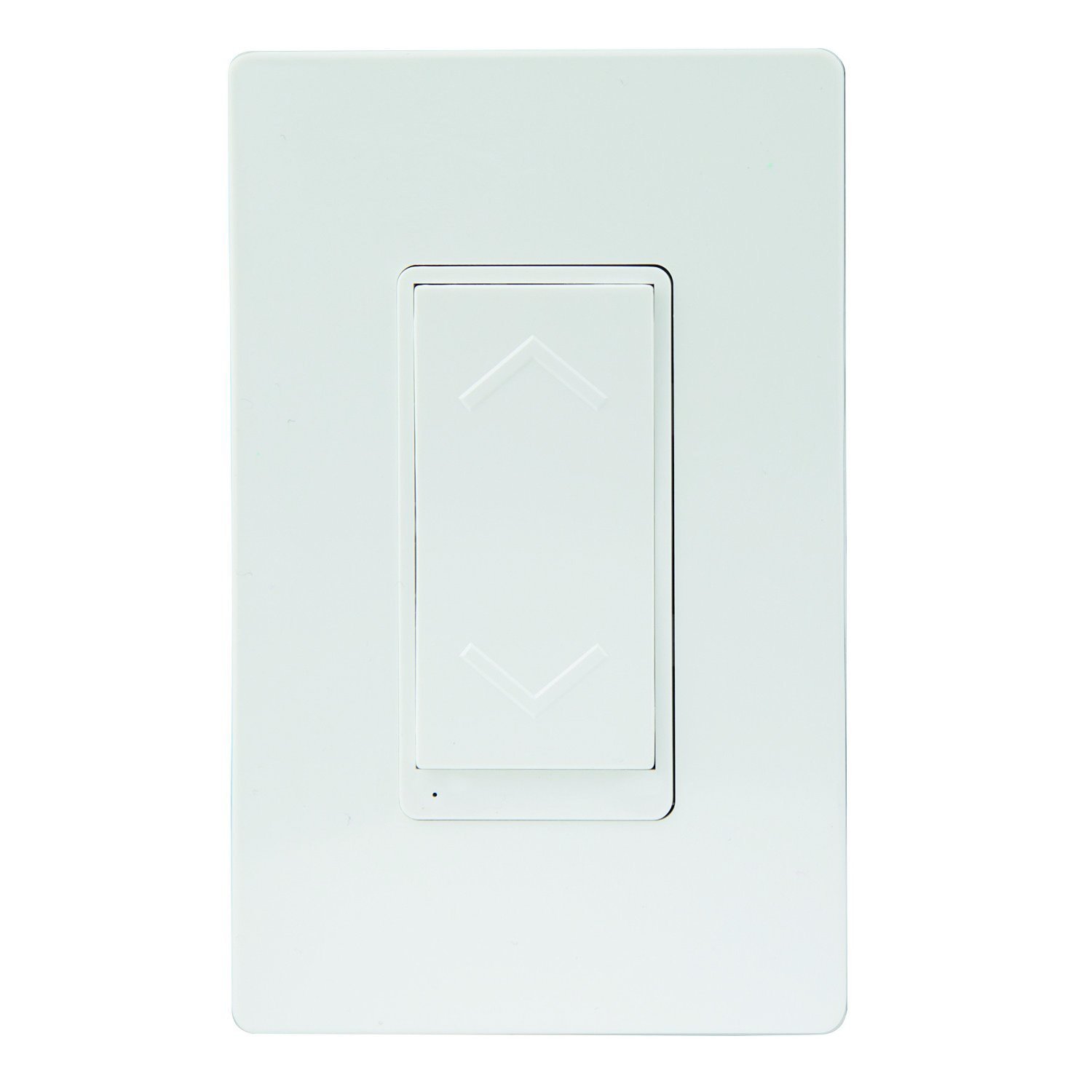

Enerwave ZW500D-W Z-Wave Dimmer Switch In-Wall Wireless

../../../_images/enerwave_incandescent_dimmable.jpg

Basic operation

  • Replace Your Current Wall Switch or Dimmer to Enable Wireless Dimming ON/OFF Control After Paired to Z-Wave Network. This Device is Fully Compatible and Interoperable with other Z-Wave Compliant Devices and Controllers.
  • Manual & Remote ON/OFF Dimming Control of all Dimmable Lamps Including Incandescent, LED, Halogen & CFL. The Preset Light Level Feature Allows the Dimmer to Turn the Light on At the Previous Level Before it was Turned Off.
  • Single Pole (Single Location) or 3-Way (Multi-Location) Allows you to Control Lighting From Multiple Locations Manually with a Button Press, or with your Z-Wave Remote (PC Mac Web App, Smart Phone App, Internet Connected Tablet App)
  • This Dimmer Switch can be added in a Z-Wave Association Role such as Double Tapping the Button to Turn ON/OFF light and Another Appliance Together. This can be Programmed by your Z-Wave Controller/Hub.
  • NEUTRAL WIRE REQUIRED 120VAC, 60Hz, 500W, 908.42MHz (Z-Wave Network Frequency) Air-Gap Switch Meets UL Requirements. LED indicator, 100ft Z-Wave Range - Acts as a Z-Wave Repeater to Extend the Range of your Z-Wave Signal up to 100ft. Includes a two year manufacturer’s warranty. Manufactured in a ISO9001 Registered Facility.

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Press the ON/OFF button
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press the ON/OFF button (to reset)
  • Press the ON/OFF button one more time (to add)
  • Wait for VENUS scan & detect this device and inform in app

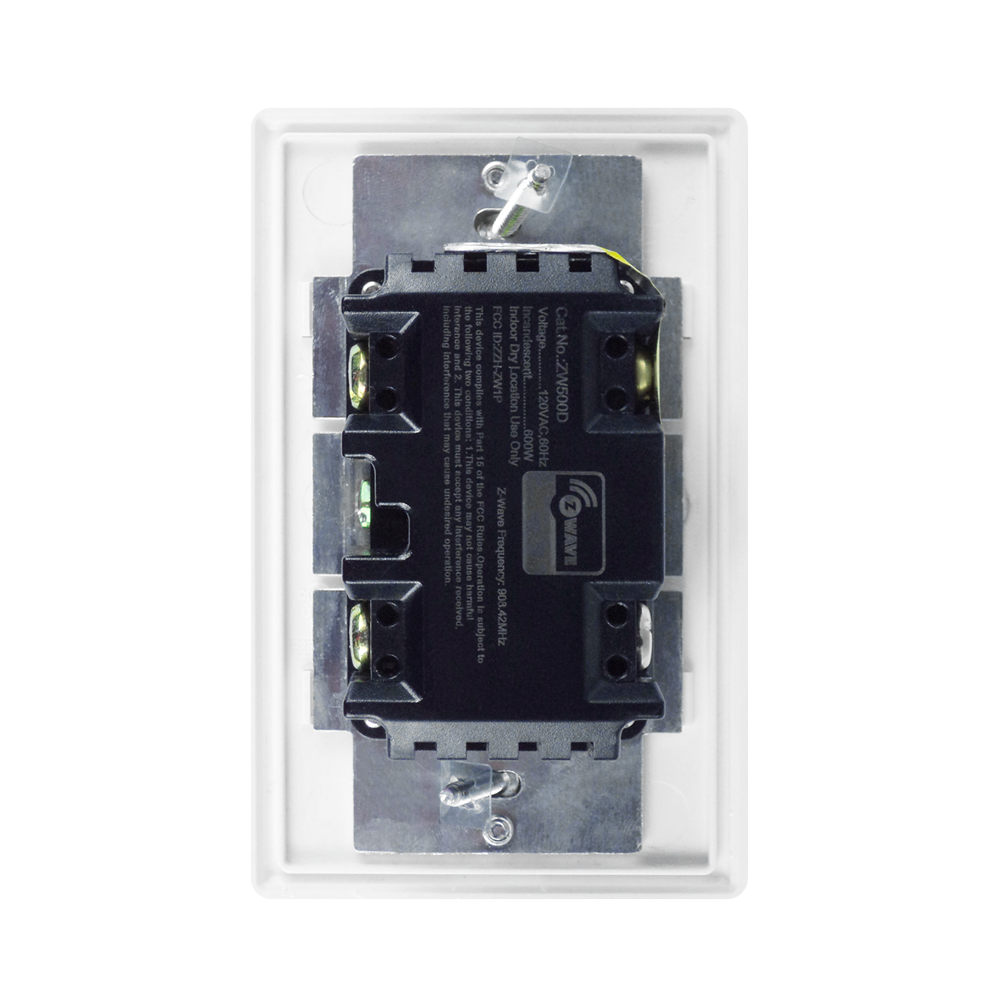

../../../_images/enerwave_incandescent_dimmable_i.png

How to add/remove associated device(s) to

This devive can support single association group with up to 5 target nodes.

To add associated device(s) to this sensor, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Short press ON/OFF button once
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Short press ON/OFF button once
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Configuration LED indicator reverse

    Available 0: Turn light ON, LED indicator OFF 1: Turn light ON, LED indicator ON
    Default 0

  2. Configuration button reverse

    Available 0: Top button is ON button, bottom button is OFF button 1: Top button is OFF button, bottom button is ON button
    Default 0
