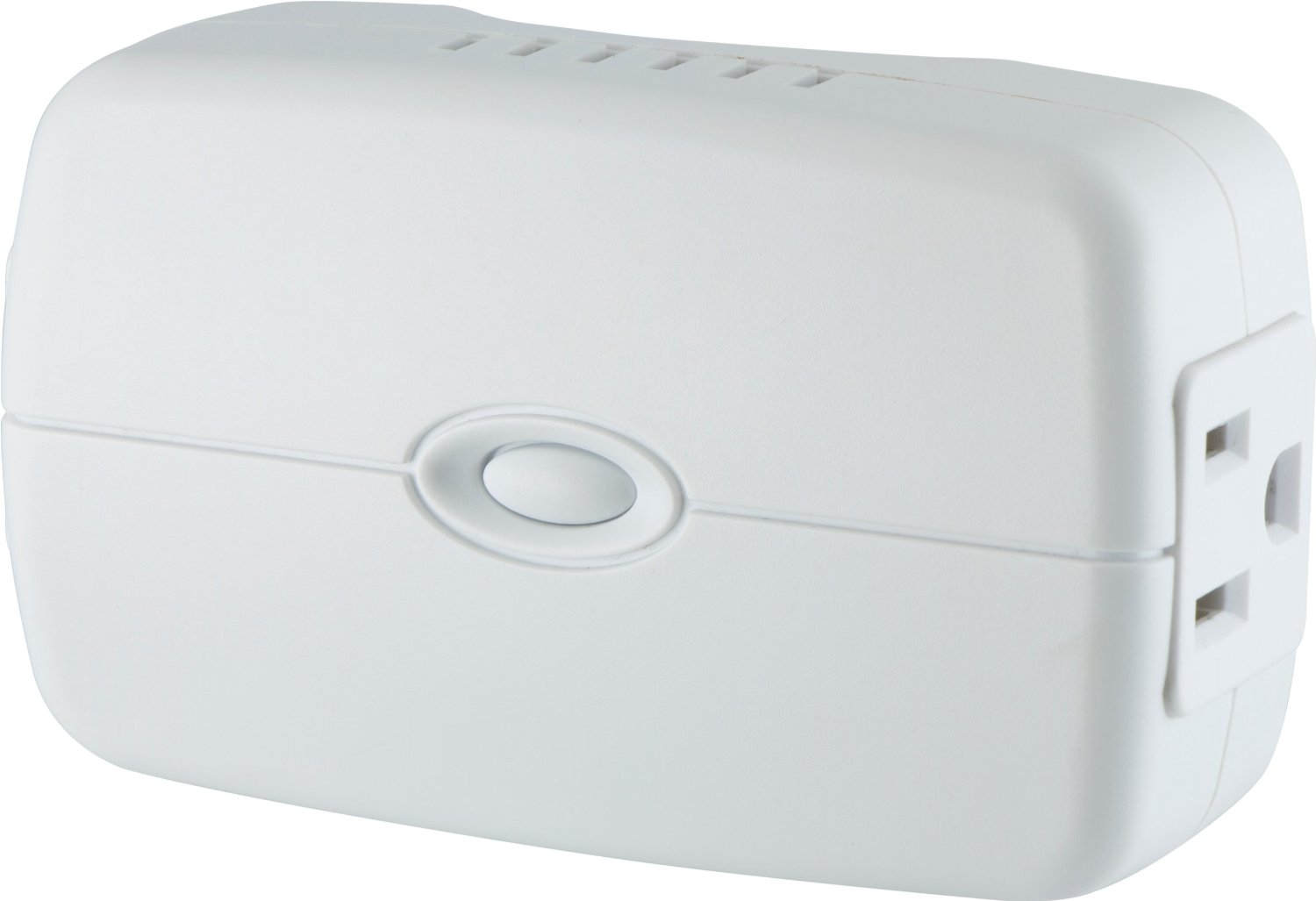

GE Z-Wave Wireless Lighting Control Lamp Module with Dimmer Control

../../../_images/ge_lamp_module_with_dimmer.jpg

Basic operation

  • Power 120VAC, 60Hz
  • Signal (Frequency) 908.42 MHz
  • Maximum load for both outlets 15A, 1800W Resistive
  • Maximum load for the Z-Wave controlled outlet: 2.5A 300 W
  • Incandescent; 100W Dimmable CFL/LED
  • Z-Wave controlled outlet is fused @ 5A. This fuse is not user serviceable.
  • Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Operating Temperature Range: 77° F (25° C)
  • For indoor use only.

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Plugin device to power supply socket
  • Press z-wave button once
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Plugin device to power supply socket
  • Press z-wave button once (to reset)
  • Press z-wave button once more time (to add)
  • Wait for VENUS scan & detect this device and inform in app

Configuration description

There is no configuration in this device.
