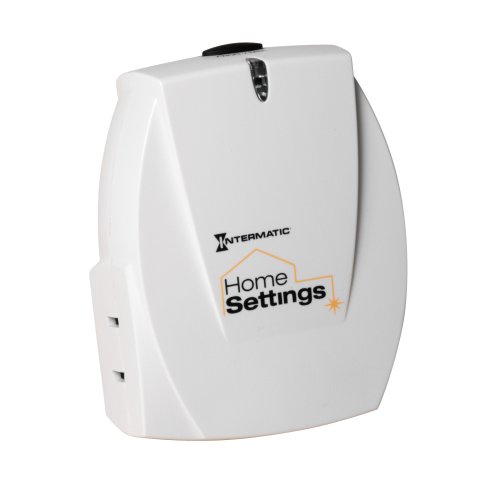

Intermatic HA03C Home Settings Wireless Plug-In Indoor Lamp Module

../../../_images/intermatic_ha03c_indoor_lamp.jpg

Brief information

  • Controls on/off and dimming for incandescent lamps
  • LED shows feedback from controller during setup and that the controlled device is working
  • Easy to install
  • LED shows feedback from controller during setup and that it is working
  • For indoor use only

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Powerup device
  • Press and release Program button
  • LED will stop flash
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press and release Program button (to reset)
  • LED will flash continuously
  • Press and release Program button once more (to add)
  • LED will stop flash
  • Wait for VENUS scan & detect this device and inform in app

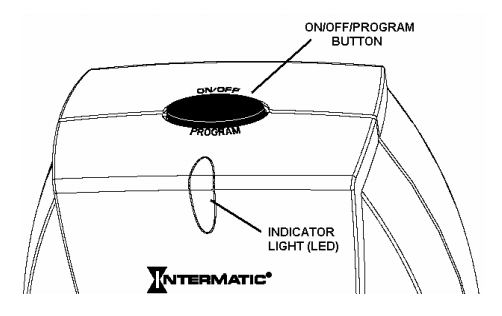

../../../_images/intermatic_ha03c_indoor_lamp_module_d.png

Configuration description

There is no configuration in this device.
