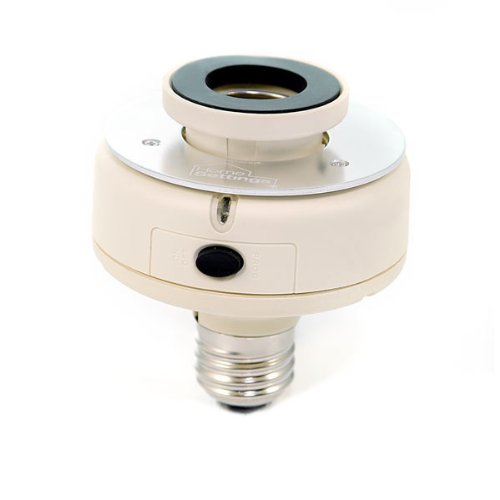

Intermatic HA05C Home Settings Screw In Module

../../../_images/intermatic_ha05c_screw_in_module.jpg

Brief information

  • For incandescent, CFL, and PAR lamps
  • Fits most outdoor fixtures
  • On/off functions
  • Temperature operating range: -35 degrees Celsius to 60 degrees Celsius
  • 300-watts Tungsten, 42-watts compact fluorescent

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Powerup device

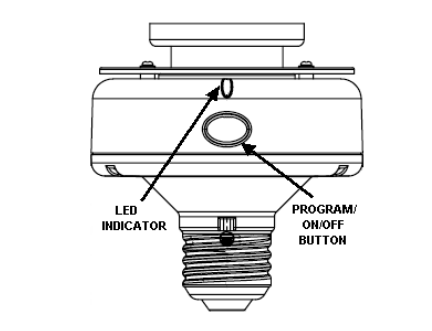

  • Press and release Program button
  • LED will stop flash
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press and release Program button (to reset)
  • LED will flash continuously
  • Press and release Program button once more (to add)
  • LED will stop flash
  • Wait for VENUS scan & detect this device and inform in app
../../../_images/intermatic_ha05c_screw_in_d.png

Configuration description

There is no configuration in this device.
