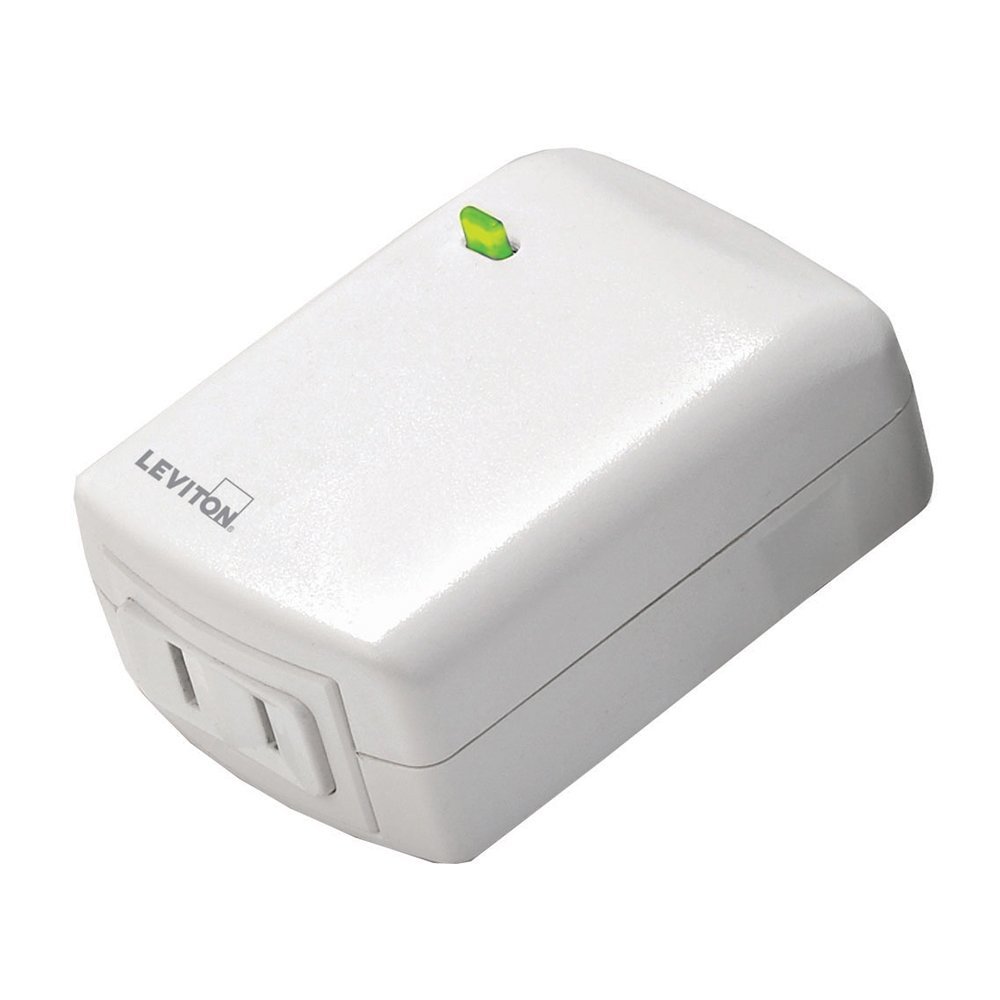

Leviton DZPD3-1LW Decora Z-Wave Controls 300-Watt LED/CFL Compatible Plug-In Dimming Lamp Module, White

../../../_images/leviton_compatible_plugn_dimmer_lamp_module.jpg

Brief information

  • Compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub)
  • 100W Dimmable LED/CFL, 300W Incandescent, Halogen
  • Scene capable
  • Transient surge suppression built-in
  • Compatible with Z-Wave Network Wide Inclusion, Beaming and Security

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Plugin device to power socket

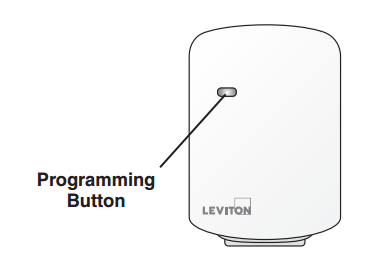

  • Press the Programming button on the face of the module
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Press the Programming button on the face of the module (to reset)
  • Press the Programming button on the face of the module one more time (to add)
  • Wait for VENUS scan & detect this device and inform in app
../../../_images/leviton_plugin_lamp_module_d.png

Configuration description

There is no configuration in this device.

Factory reset

To factory reset device, unplug the module and wait for 5 seconds. Plugin it back and within 20 seconds press and hold the programming button until the LED turns amber and then turn to red. The module is now reset.
