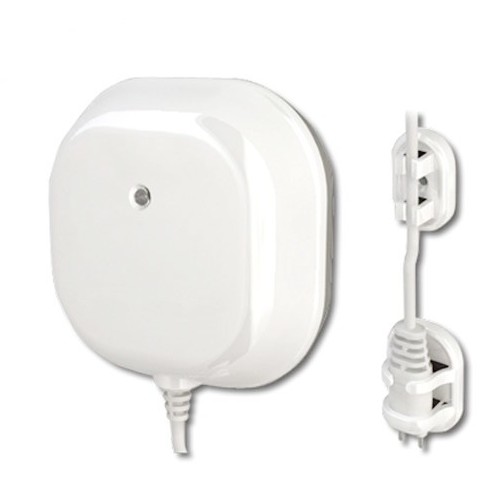

Everspring Water/Flood Sensor

../../../_images/everspring_flood_sensor.jpg

Brief information

  • Battery: 1.5V AAx3 pieces
  • Battery life: about 1 year, @25oC standby mode

How to add to VENUS app

1. Activation
  • Press “Add button” (button ‘+’) in app
  • Insert battery
  • Wait for VENUS scan & detect this device and inform in app
2. Reset then re-add
  • Press “Add button” (button ‘+’) in app
  • Quickly triple press link key within 1.5 second to reset
  • Quickly triple press link key within 1.5 second again to add
  • Wait for VENUS scan & detect this device and inform in app

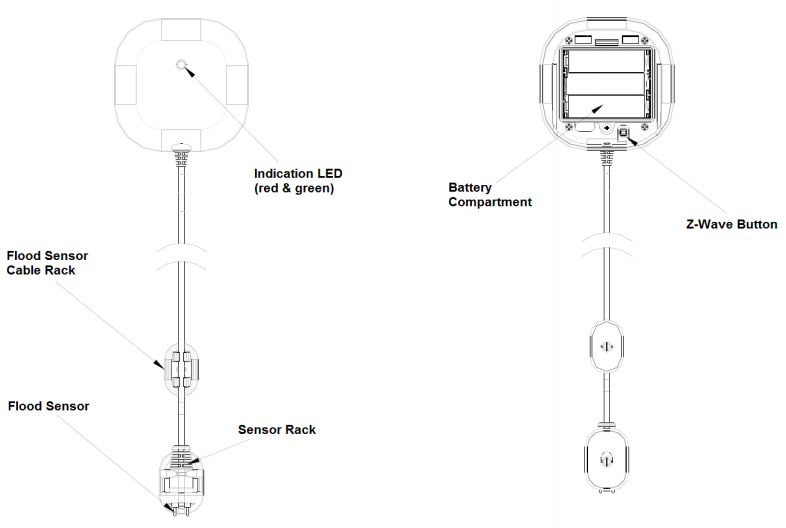

../../../_images/everspring_flood_sensor_b.png

How to add/remove associated device(s) to

This device supports 2 association group, 1 node in group #1 and 3 nodes in group #2.

To add associated device(s) to this device, below action is required:

  • Add z-wave notified-devices (which will be associated to this sensor) to VENUS
  • Select Associate button and then select notified-device(s) to add
  • Wake-up this sensor: Press Z-Wave button
  • If successful, pop-up notification displays in VENUS app

To remove associated device(s) from this sensor, below action is required:

  • Select Associate button and then select notified-device(s) to remove
  • Wake-up this sensor: Press Z-Wave button
  • If successful, pop-up notification displays in VENUS app

Configuration description

  1. Trigger level to associated devices

    This setting determines trigger level will be sent to all devices in associated list.
    • Available:
      • Send trigger OFF
      • Send trigger ON with dim level 1 ~ 99, trigger ON to binary level devices

    • Default: Trigger ON with dim level 99

    • Parameter 1, 1 byte size
